NITOSHIELD™ HS1000/HS1000B

NITOSHIELD™

Nitoshield™ is an adhesive-backed heat shield for local thermal protection of temperature sensitive components. The adhesive nature of this product does not require any mechanical mounting features and allows for applications with tight clearances.

Features

  • Weather resistant adhesive with strong adhesion to a variety of metal and plastic surfaces.
  • Protection of plastics, rubbers, and coated surfaces to prevent local melting and long term degradation.
  • Varied thicknesses depending on required insulation performance
  • Black colored version available for applications with aesthetic requirements
  • Faster and cheaper tooling vs. stamping tools and injection molding tools.

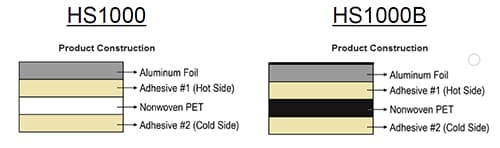

Structure

Properties

TEMPERATURE RESISTANCE 175C minimum for 3000hrs
PEEL STRENGTH
90 Peel 300
Condition On Ecoat On Nylon
Intial 7.0 N/cm 6.9 N/cm
500hrs @ 150C 11.5 N/cm 7.1 N/cm
3000hrs @150C 11.0 N/cm 10.3 N/cm
THERMAL CONDUCTIVITY
Per ASTM C518
@75C 0.047 W/m*K
@120C 0.053 W/m*K
EMISSIVITY, Hemispherical
Per ASTM E408
0.034
FLAMMABILITY UL V-0

Applications

  • Prevent local melting and long term embrittlement of plastics, rubbers, and coatings.
  • Underhood fluid reservoirs, wire harnesses, ducts, plastic fuel tanks, cowls/leafscreens, aerodynamic underbody treatments, etc.
  • Back side of painted panels to protect paint from blistering if there are nearby heat sources.
