Double-coated Tape 5790

Nitto 5790 series are double coated foam tapes, based on a cross linked polyolefine foam, coated with pressure sensitive adhesive, having excellent bonding properties, especially on low energy surfaces.

Available in different thicknesses.

Download

Features

  • Excellent holding properties
  • Excellent repulsion resistance
  • Good shock absorbance
  • Adhesion on a wide range of materials (especially on polyolefine)
  • Absorb irregularities of the substrate
  • Sound dampening and sealing properties
  • RoHS compliant

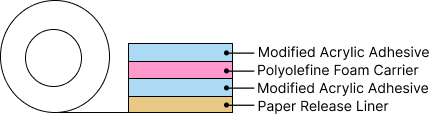

Structure

  1. Acrylic adhesive
  2. Polyolefine foam
  3. Acrylic adhesive
  4. Release liner

Properties

Adhesive typePressure sensitive modified acrylic adhesive
Tape thickness0,6 / 0,9 / 1,1 mm  -  23/ 35/43 mil
Release linerSiliconised brown paper
Carrier typeCrosslinked polyolefine foam
Adhesion value1700 cN/20mm / 77 oz/in
Release value30 cN/50mm / 1.3 oz/in
Static shear1,0 mm/3h

Applications

Nitto 5790 series are designed for bonding metal sheets, nameplates, emblems, glass parts and a wide range of plastics to several substrates.
These products can be used for interior and exterior applications.
