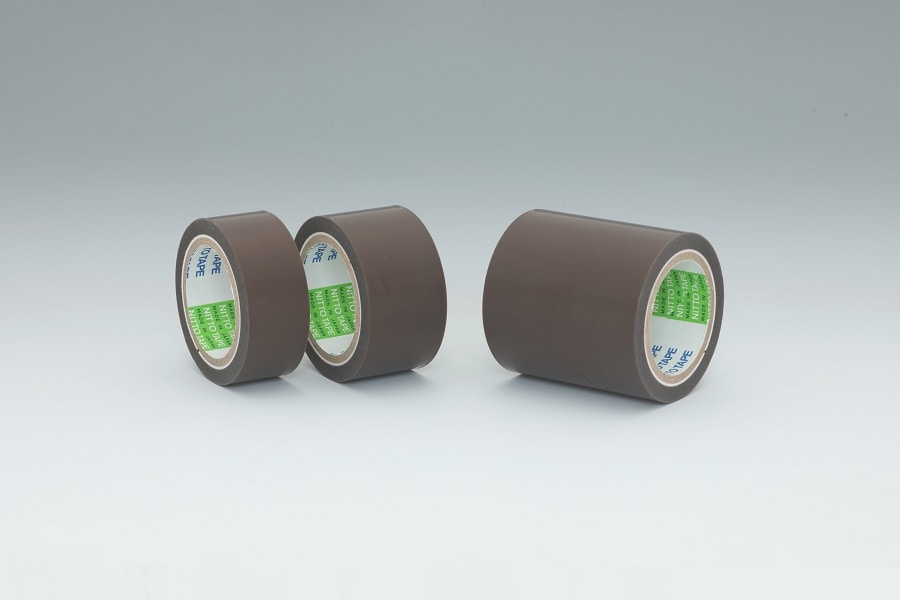

Excellent heat resistance,insulation, sliding, chemical resistance NITOFLON No.903UL/No.9030UL

Adhesive tape coated with single surface silicone adhesive on Fluoroplastic Film.

Not only as a heat resistant tape but also to be used for various applications as follows.

Download

Features

  • UL510 certified.
  • Environment-friendly and complies with Notification No.20 of the Ministry of Health, Labor and Welfare.
  • Superior in mold-releasing and sliding property.
  • Uses the Class H insulating material.
  • Superior flame resistance.
  • Non-adhesive side of the tape offers excellent characteristics of polytetrafluoroethylene, such as electrical property, resistance to heat, weather, chemical, and water (water-shedding), low friction coefficient and non-adhesiveness.
  • Can smoothly adhere, wind, band and seal, just like regular adhesive tapes.

Structure

Specifications

Product No.ColorThickness [mm]Width [mm]Length [m]
No.903UL-0.085 - 45010
0.13
0.18
0.23

Properties

ProductsThicknessTensile strengthAdhesive strengthRewinding forceBreakdown voltageTemperature range
mmN/19mmN/19mmN/19mmkV°C
No.903UL0.08555.64.48-60 - 200
0.13937.15.811
0.181607.47.114
0.232108.78.915
ProductsThicknessTensile strengthAdhesive strengthRewinding forceBreakdown voltageTemperature range
mmN/19mmN/19mmN/19mmkV°C
No.9030UL0.08533.92.08-60 - 200
0.13885.12.811
0.181335.43.014
0.231466.23.515

[Remarks]

  • *The above values are sample observed values, not the guaranteed performance.

Applications

  • Heat resistant electrical insulation (for Class H electrical insulation)
  • Coating for crimping part of heat sealing
  • Friction control and furtherance in sliding sections
  • Insulation coating of bounding, etc.
