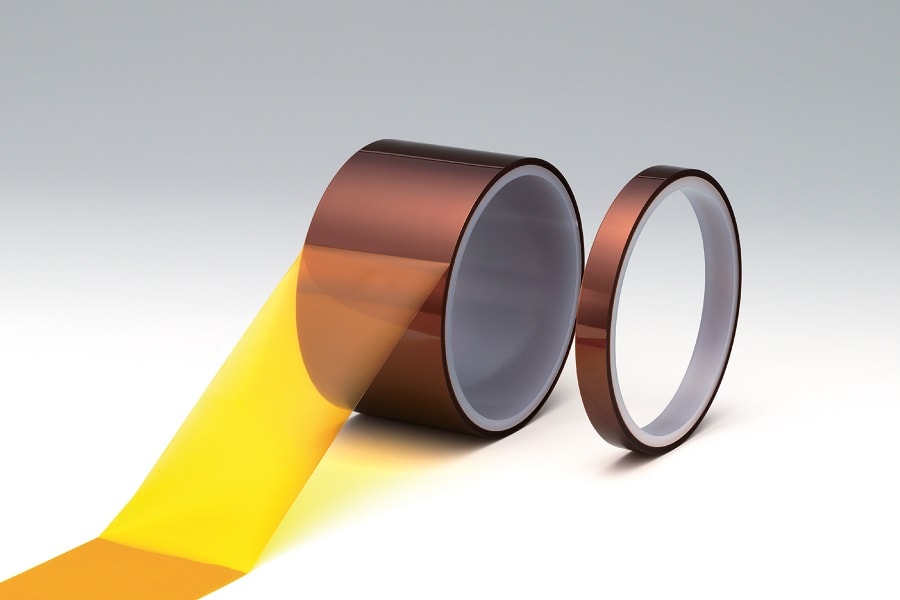

Polyimide Adhesive Tape for Heat-resistant Insulation No.360 Series

Widely used for heat-resistant electrical insulation of electrical/electronic equipments.

Tape with polyimide film backing with superior heat resistance. Widely used in a variety of applications, such as the insulation of electrodes in lithium ion secondary batteries and applications requiring heat resistant masking, such as in component mounting reflow processes and the manufacturing processes of various types of electronic components.

Download

Features

  • Offers superior electrical insulation properties.
  • Offers superior dimension stability.
  • Offers superior heat resistance.
  • Narrow width processing is available.
  • Available in long lengths.

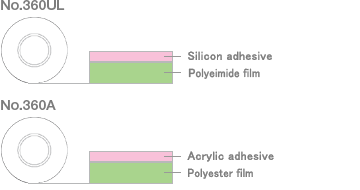

Structure

Properties

Product No. No.360UL No.360A
Thickness [mm] Backing 0.025 0.050 0.025 0.050
Total 0.060 0.090 0.053 0.080
Standard Length[m] 20 20
Color Light Amber Brown Light Amber Brown
Peeling strength [N/19mm] 5.4 5.4 4.0 4.4
Tensile strength [N/19mm] 145 250 145 250
Elongation [%] 65 65 65 65
Breakdown voltage[kV] 8.0 11.0 8.0 11.0
Electrolytic corrosion factor 1.00 1.00

[Remarks]
    The above values are sample observed values, not the guaranteed performance.

Applications

  • Component-mounting reflow process.
  • Heat-resistant masking.
  • Secondary battery electrode insulation.
  • Heat-resistant electrical insulation.
