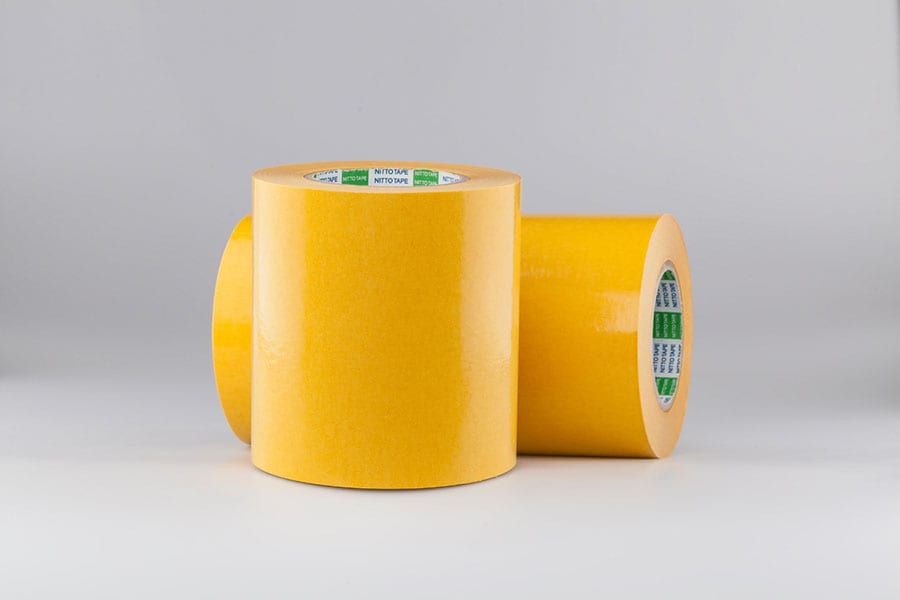

Double-coated Tape D9605

Nitto D9605 is a double-coated tapes with a polyester carrier coated with an aggressive acrylic adhesive used for mounting of different types of plastics.

Download

Features



  • High adhesion on different substrates & rough surfaces
  • High temperature resistance
  • High holding power
  • Easy processing
  • Bobbin shape
  • RoHS compliant (2011/65/EC, 2015/863)

Structure

  1. Modified acrylic adhesive
  2. Polyester carrier
  3. Modified acrylic adhesive
  4. Release liner

Properties

Adhesive type Pressure sensitive modified acrylic adhesive
Tape thickness 0.220 mm
Release liner Siliconised havana paper (90 g/m²)
Carrier type Ppolyester (0.050 mm)
Adhesion value 2000 cN/20mm
Release value 30 cN/50mm
Static shear 1 mm/3h

Applications

Nitto D9605 is used for mounting decorative profi les in furniture industry (trim mounting), cable ducts. Available in bobbin shapes designed for continuous application process.

Suitable for mounting price information holders and plastic parts in sign & nameplate markets for marketing devices (Point Of Sales).
