Surface Protective Materials LASERGUARD 3100H5 BLUE

Nitto LASERGUARD 3100H5 BLUE is a surface protection tape, which protects metal surfaces during laser cutting processes.

The unique concept of a special, printed blended PE carrier, combined with a special release layer and modified rubber-based adhesive, makes your cutting processes shorter and more efficient and will result in higher added value end-products.

Download

Datasheet

SDS

Datasheet

NBE_LASERGUARD3100H5Blue_ENG

SDS

The information contained herein is based on all the documentation, information and data that can be obtained as of the date issued.

However, Nitto Denko Co., provides no warranties or guarantees, express or implied, regarding the accuracy or completeness of the information on contained amount, physical or/and chemical properties, and hazards or/and harm mentioned herein.

As for SDS of products categorized as "Article", Nitto Denko Co., voluntarily creates and releases the SDS for the particular products which frequently receive inquiries.

SDS_NBE_LASERGUARD3100H5BLUE_ENG

Features
Structure
Properties
Applications

Features

laser cutting of stainless steel above 2 mm
no pre-cutting required
no bubble-forming
functional print
low unwind during lamination
very high adhesion
recyclable film with high mechanical strength

Structure

Pressure sensitive rubber-based adhesive

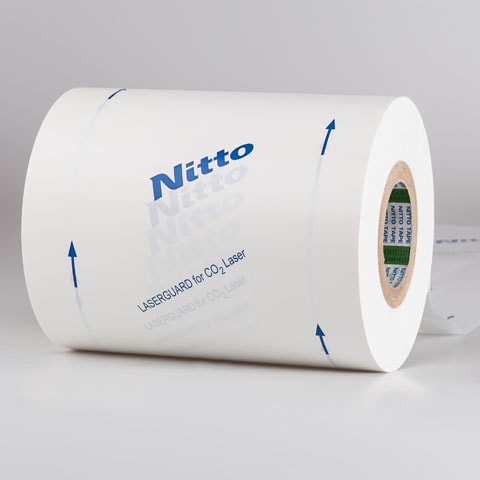

White polyethylene film, printed with arrows, lines and the Nitto Denko brand name in blue
Special wax release coating

Properties

Adhesive type	Rubber-based
Film type	Polyethylene film
Total thickness	105 µm / 4.13 mil
Adhesion to BA steel	300 cN/20 mm / 13 oz/in
Tensile strength MD	min. 23 N/20 mm / 105 oz/in
Elongation MD	min. 150%
Weatherability to BA steel	50 h
Color	White with blue printed arrows, lines, Nitto

Applications

LASERGUARD 3100H5 BLUE is a surface protection tape that protects metal surfaces during CO2, N2 or O2 laser cutting processes. The combination of printed white PE carrier with a very high adhesion, rubber-based adhesive and a special wax release layer makes it the ideal protective tape for laser cutting processes.
