Vinyl adhesive tapes No.2107TV

For general wire harnesses use.

ダウンロード

Features

  • The tapes are with good performance of wrapping and firmness.
  • 14 colors in total.
  • The ingredient of heavy metal comply with the directive of RoHS and ELV.
  • The material which can suppress the content of VOC become low is used.
  • The plasticizer of phthalic ester as DINP to be used.

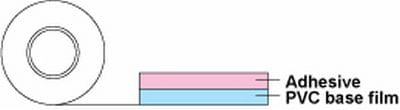

Structure

Specifications

Thickness [mm] Width [mm] Length [m] Color
0.13 10,19,25,30 20 Black,White,Green,Yellow,Gray,Blue,Red,Pink,Orange,
Brown,Purple,Sky Blue,Light Green,Transparent
*For other sizes, please contact us.

Properties

Property Unit No.2107TV
Thickness [mm] 0.119
Adhesive strength (to stainless steel plate) [N/19mm] 2.38
Tensile strength 39.2
Elongation [%] 199
