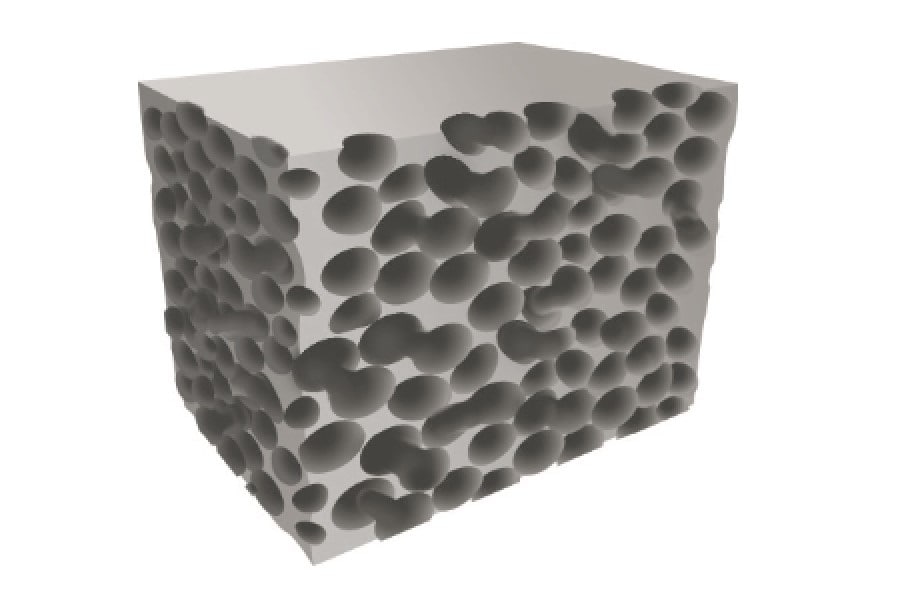

A low VOC black expanded semi-closed cell EPDM synthetic rubber mixture designed for a variety of high performance gasketing and insulation applications.
Sealing applications requiring low VOC emissions Extra softness allows for easy compression to effectively seal gaps with large tolerances Compression of 50% or greater will provide a closed-cell structure Sheet stock is available in thicknesses ranging from 3 to 30 mm Can be die-cut for applications such as gasketing around HVAC modules, pass-through seals, interior trim seals, component weatherstripping, etc.
· Low VOC for environmentally sensitive applications
· Low density and extra softness
· Available in roll or sheet form
· Two types of PSA backing available to facilitate positioning of the part
· Excellent resistance to ultraviolet light
|
BASE POLYMER |
EPDM |
VOC (g/10 cm³) |
||||
|
COLOR |
Black |
FORMALDEHYDE |
<0.08 |
|||
|
DENSITY (ASTM D1056) |
65 – 100 kg/m³ (4.1 – 5.9 lb/ft³) |
ACETALDEHYDE |
2.8 |
|||
|
COMPRESSION DEFLECTION (ASTM D1056: @ 50%) |
2.0 – 7.5 kPa (0.3 – 1.1 psi) |
TOLUENE |
10 |
|||
|
COMPRESSION SET (ASTM D1056) After Bake |
25% max |
XYLENE |
0.25 |
|||
|
TENSILE (ASTM D412) |
40 kPa Min (5.8 psi Min) |
ETHYL BENZENE |
0.11 |
|||
|
ELONGATION (ASTM D412) |
250% Min |
STYRENE |
<0.05 |
|||
|
SERVICE TEMPERATURE (JIS-K-6767) |
-55°C to 121°C (-67°F to 250°F) |
TETRADECANE |
0.82 |
|||
|
FLAMMABILITY (FMVSS 302) |
< 25 mm/min (< 1 in/min) |
PHTHALIC ACID DI-BUTYL |
<0.05 |
|||
|
PHTHALIC ACID DI-2-ETHYLHEXYL |
<0.05 |
|||||
