Nameplate Surface Protection Film   SPV-KL-680

Surface protective materials that offers outstanding heat resistance and weatherability

This is a PVC film base material surface protective tape for nameplates.Since it has excellent heat-resistant,plate thermal bonding and hot press is possible

Features

  • Excellent heat resistance, durable against hot press fabrication
  • Withstand the punching, drawing or bending process, protecting the nameplates from damage
  • Light unwinding and easy laminating workability
  • Excellent weatherability

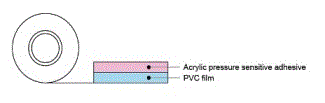

Structure

Properties

Adhesive Strengyh (N/20mm)
0.80
Unwinding Force (N/20mm) 0.20
Total thickness (mm) 0.080
Elongation (%) 200
Tensile strength MD (N/20mm) 50
Width (mm) 1250
Color Clear/Light blue

Applications

Surface protection for nameplates during heat lamination and transportation
