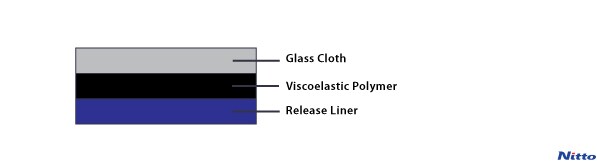

COLOR | Facing: Light Grey Polymer: Black | ||
SPECIFIC GRAVITY | 1.3 | ||
SHELF LIFE | At least 6 months when stored at 40°C or less | ||
TEMPERATURE RESISTANCE | Withstands a bake of 1 hour at 200°C with no deformation | ||
PEEL STRENGTH (90° Peel on Stainless Steel) | @ 0°C | 35 N/25mm | |
@ 20°C | 78 N/25mm | ||
@ 40°C | 29 N/25mm | ||
COLD FLEXIBILITY | Can be bent around a 25 mm mandrel at -30°C with no cracking or loss of adhesion | ||
FLAMMABILITY | Meets FMVSS 302, self-extinguishing | ||
DAMPING PROPERTIES (Per SAEJ1637, 0.8 mm test beam) | Composite Loss Factor between -20 and 50°C @ 200 Hz: 0.07 – 0.42 (@ 2.2 mm thickness) |
