Vibration-damping Material LEGETOLEX D-300

Legetolex is a visco-elastic, structural damper with a high damping performance and a low weight.

Download

Features

  • High performance vibration damping
  • Extremely lightweight, reduces overall vehicle weight
  • Excellent adhesion on the vibrating structure thanks to the special rubber compound
  • Easy to apply even on curved or oily surfaces
  • Application possible before and after ED-paint process
  • Design, test and evaluation in our Automotive Technical Centre (ATC)
  • Robotic application possible
  • Improves door closure sound

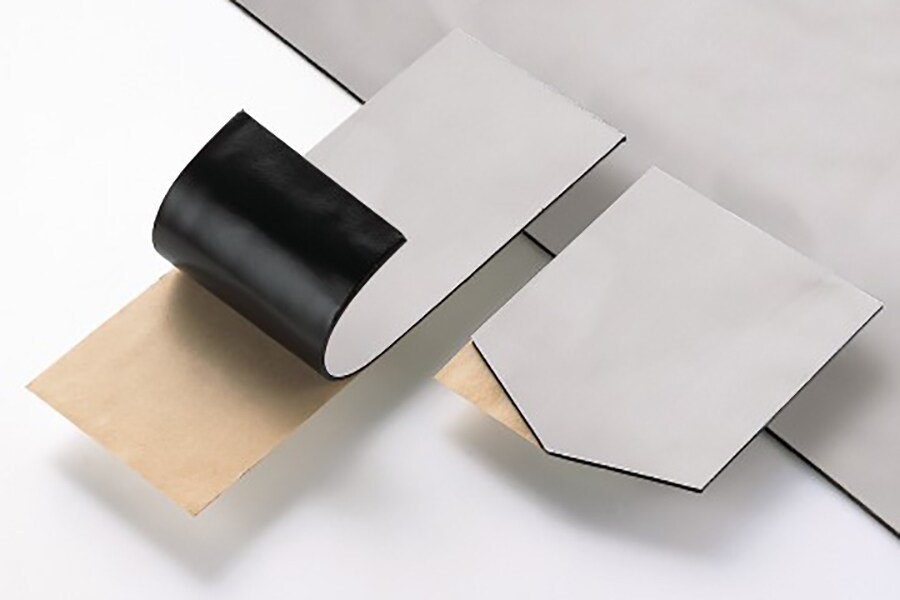

Structure

  1. Aluminium layer
  2. Rubber layer
  3. Release liner

Properties

Initial thickness 1.5 mm
Constraining layer thickness 0.127 mm
Adhesion to BA steel 100 kPa
Weight 2300 g/m²

Application

Legetolex finds its use in vibration damping of sheet metal panels. It is a typical automotive product, although other applications are very common as well (washers, dryers, ovens, etc).
By applying damping material to about 30% of the panel surface, sufficient noise reduction can be obtained.
