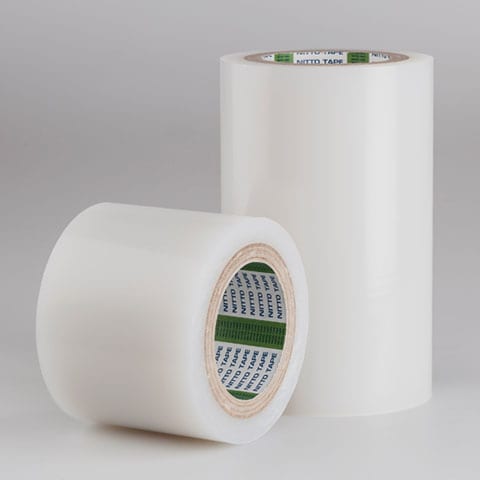

Surface Protection Tapes for rough and textures surfaces SPV 9300-series

SPV 9300-series are surface protection tapes suitable to protect rough and textured surfaces during light mechanical processes, storage and transportation.

These tapes consist of a special PE film coated with a pressure sensitive acrylic-based adhesive.

Download

Features

  • Rough surface protection
  • Low gloss surface protection (10 to 35%)
  • Very high adhesion level
  • Good wetting behaviour
  • Good humidity resistance
  • Substrate identification and inspection
  • Stretching resistant film
  • Recyclable

Structure

  1. Pressure sensitive acrylic-based adhesive
  2. PE film*

* SVP 9310: Clear transparent
* SPV 9320: Clear transparent

Properties

Typical Value Test Method
Film type Modified PE film
Adhesive type Acrylic-based
Total thickness 0.070 mm EN 1942
Adhesion on BA steel SPV 9310: 320 cN/20 mm EN 1939
SPV 9320: 430 cN/20 mm EN 1939
Weatherability on BA steel* SPV 9310: 25 hours ISO 4892-2
SPV 9320: None ISO 4892-2
Tensile strength MD** 25 N/20 mm EN 14410
Elongation MD 250% EN 14410
Colour Clear transparent
Transport and storage conditions Temperature 15 to 30 °C
Relative humidity 40 to 75% RH

* The weatherability is measured on BA steel. Depending on the substrate the weatherability performance can be different.
** MD = Machine Direction
CAUTION: The above are typical values and should not be used in writing specifications.
Details from the test methods are described on the customer product specification.

Applications

SPV 9300-series are ideal products to protect low gloss surfaces, like rough plastics and laminates. Furthermore it’s a perfect solution for rough and textured PVDF, PUR and polyester lacquered substrates. These tapes cover gloss levels varying from 10% to 35%.
