HEAT-BONDABLE DAMPING SHEET 1700

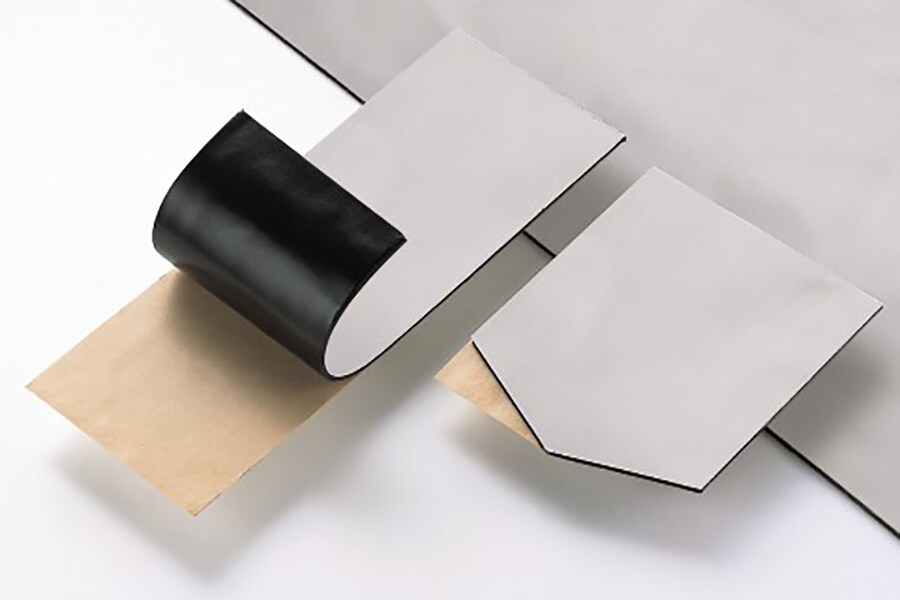

HEAT-BONDABLE DAMPING SHEET

A high-efficiency, heat-bondable vibration damper, supplied in die-cut sheets, available in a variety of standard weights and intended for horizontal surfaces.

Download

Features

  • A filled asphaltic mastic with anti-blocking and heat-bondable films on each side
  • Good damping efficiency over a wide temperature range
  • Horizontal surface applications
  • Good conformability and bond
  • One part number for symmetrically opposite parts
  • Can be combined with pressure sensitive adhesive (Product Code: 1200)

Structure

Properties



COLOR

Blackish Brown

SPECIFIC GRAVITY

1.60 - 1.85 typical

SOLIDS CONTENT

99 - 100%

SHELF LIFE

Minimum 90 days below 35°C

MINIMUM BAKE REQUIRED

30 minutes at 115°C (240°F)

COLD ADHESION

No loss of adhesion to -30°C

PEEL ADHESION

Exhibits cohesive failure after the following exposures

Heat Aged

Humidity

Environmental Cycle

2 weeks at 70°C

100%/38°C: 250 hrs

6 weeks

DAMPING PROPERTIES

Tested on 3.7 kg/m² (0.75 lb/ft²) damper sheet.

Composite Loss Factor (c) between 10 and 55°C @ 200 Hz:

0.1 – 0.2
