Flame-retardant NITTO EPTSEALER EC-100 Series

Products of the Nitto Denko EC-100 Series which have obtained UL-94 HF-1 certification are composed of a flexible foam sealing material consisting of EPDM rubber foam with a semi-closed cell structure mixed with a flame retarder. Various types with adhesive layers are available, all of which take advantage of their flexible foam properties.

The products can be used for waterproofing, airtightness, soundproofing, or thermal insulation according to the compression ratio.

Download

Features

- Flame retardant UL94, HF-1

- semi-closed cell structure

- super soft / conformable

- low compression load

- ozone resistance

- good weatherability

- excellent ageing performance

- sound absorption

- good recovery property

- wide range of performing tapes

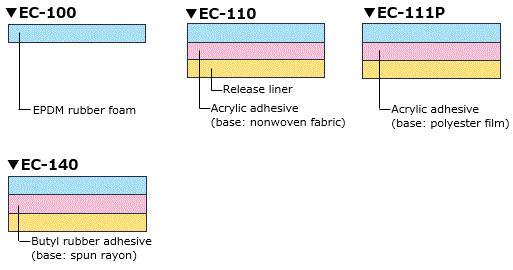

Structure

Specifications


Thickness[mm] Width[mm] Length[m]
1.5~25 1,000 2
*EC-111P is 900mm width.

Properties

Product No. Specific gravity Tensile strength
[N/cm2]
Elongation[%] Compressive hardness[N/cm2]
25% 50%
EC-100Series 0.085 7.0 270 0.18 0.28

[Remarks]
  • *The above values are sample observed values, not the guaranteed performance.

Applications

EPT-Sealer EC-100 series are especially designed for waterproofing, air sealing, soundproofing and thermal insulation for electric/electronic equipment.

AUTOMOTIVE – ECU application, electric motors / actuators

INDUSTRIAL – mobile phones, information processing equipment and household appliances.
